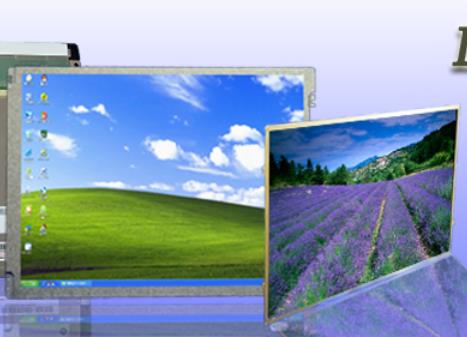

| 产品名称：友达液晶屏 产品型号：点击查看友达液晶屏 |
| 特性：工业屏 |
|
|
| 基本参数： |
| 厂商品牌： |
友达 |
| 面板尺寸： |
可选 |
| 分辨率： |
可选 |
| 面板亮度（cd/m2）： |
可选 |
| 可视角度(U/D/L/R)： |
可选 |
| 背光类型： |
LED |
|
|
| 备注说明： |
|
详细资料请来电咨询：0755-83405022
|
尺寸
|
型号
|
分辨率
|
亮度
|
工作温度
|
背光寿命
|
备注
|
|
10.1
|
A101VW01 V.3
|
800x480
|
300
|
-10~60
|
20000
|
TN/6bits/TTL
|
|
10.4
|
A104SN03 V.1
|
800x600
|
300
|
-10~60
|
10000
|
TN/6/8bits/TTL
|
|
5.0
|
G050VTN01.1
|
800x480
|
1000
|
-20~70
|
40000
|
TN/8bits/TTL
|
|
5.7
|
G057QN01 V.2
|
320x240
|
800
|
-30~85
|
50000
|
TN/6bits/TTL
|
|
5.7
|
G057QTN01.0
|
320x240
|
500
|
-30~85
|
50000
|
TN/6bits/TTL
|
|
5.7
|
G057VN01 V.2
|
640x480
|
700
|
-30~85
|
50000
|
TN/6bits/TTL
|
|
5.7
|
G057VTN01.0
|
640x480
|
500
|
-30~85
|
50000
|
TN/6bits/TTL
|
|
6.5
|
G065VN01 V.2
|
640x480
|
800
|
-30~80
|
50000
|
TN/ 6bits/LVDS
|
|
7.0
|
G070VTN02.0
|
800x480
|
1500
|
-30~70
|
10000
|
TN/6bits/TTL
|
|
7.0
|
G070VW01 V.0
|
800x480
|
400
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
8.4
|
G084SN03 V.3
|
800x600
|
250
|
-20~70
|
30000
|
TN/6/8bits/LVDS
|
|
8.4
|
G084SN05 V.9
|
800x600
|
450
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
10.1
|
G101EVN01.0
|
1280x800
|
300
|
-20~60
|
25000
|
MVA/6bits/LVDS
|
|
10.1
|
G101EVN01.3
|
1280x800
|
500
|
-20~70
|
50000
|
MVA/6/8bits/LVDS
|
|
10.1
|
G101STN01.2
|
1024x600
|
250
|
-10~60
|
15000
|
TN/6bits/LVDS
|
|
10.4
|
G104SN03 V.5
|
800x600
|
230
|
-20~70
|
30000
|
TN/6/8bits/LVDS
|
|
10.4
|
G104STN01.0
|
800x600
|
400
|
-30~80
|
70000
|
TN/6/8bits/LVDS
|
|
10.4
|
G104VN01 V.1
|
640x480
|
450
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
10.4
|
G104XVN01.0
|
1024x768
|
450
|
-30~80
|
50000
|
PSA/ 6/8bits/LVDS
|
|
12.1
|
G121EAN01.0
|
1280x800
|
500
|
-30~85
|
100000
|
IPS/6/8bits/LVDS
|
|
12.1
|
G121SN01 V.4
|
800x600
|
450
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
12.1
|
G121STN01.0
|
800x600
|
300
|
-30~85
|
30000
|
TN/6/8bits/LVDS
|
|
12.1
|
G121XN01 V.0
|
1024x768
|
500
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
12.1
|
G121XN01.001
|
1024x768
|
500
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
12.1
|
G121XTN01.0
|
1024x768
|
500
|
-30~85
|
50000
|
TN/6/8bits/LVDS
|
|
13.3
|
G133HAN02.0
|
1920x1080
|
400
|
0~70
|
50000
|
AHVA/8bits/LVDS
|
|
15.0
|
G150XTN03.5
|
1024x768
|
350
|
0~65
|
50000
|
TN/6/8bits/LVDS
|
|
15.0
|
G150XTN06.0
|
1024x768
|
450
|
-30~85
|
70000
|
TN/6/8bits/LVDS
|
|
15.6
|
G156HAN02.1
|
1920x1080
|
400
|
0~50
|
50000
|
AHVA/6bits/EDP
|
|
15.6
|
G156HTN01.0
|
1920x1080
|
300
|
-10~60
|
15000
|
TN/6bits/EDP
|
|
15.6
|
G156HTN02.0
|
1920x1080
|
400
|
-10~70
|
50000
|
TN/8bits/LVDS
|
|
15.6
|
G156XW01 V.1
|
1366x768
|
400
|
0~60
|
50000
|
TN/6bits/LVDS
|
|
15.6
|
G156XW01 V.3
|
1366x768
|
400
|
0~60
|
50000
|
TN/6bits/LVDS
|
|
17.0
|
G170EG01 V.1
|
1280x1024
|
350
|
-30~85
|
50000
|
TN/ 6bits/LVDS
|
|
17.0
|
G170ETN01.0
|
1280x1024
|
350
|
0~50
|
30000
|
TN/ 6bits/LVDS
|
|
17.3
|
G173HW01 V.0
|
1920x1080
|
400
|
0~70
|
50000
|
TN/6bits/LVDS
|
|
18.5
|
G185HAN01.0
|
1920x1080
|
350
|
-20~70
|
50000
|
AHVA/8bits/LVDS
|
|
18.5
|
G185XW01 V.1
|
1366x768
|
450
|
0~60
|
50000
|
TN/6bits/LVDS
|
|
19.0
|
G190EAN01.0
|
1280x1024
|
300
|
0~50
|
50000
|
MVA/8bits/LVDS
|
|
19.0
|
G190EG01 V.1
|
1280x1024
|
350
|
0~50
|
50000
|
TN/6bits/LVDS
|
|
19.0
|
G190ETN01.2
|
1280x1024
|
350
|
-30~85
|
50000
|
TN/6bits/LVDS
|
|
21.5
|
G215HVN01.1
|
1920x1080
|
250
|
0~60
|
30000
|
MVA/8bits/LVDS
|
|
23.0
|
G230HAN01.1
|
1920x1080
|
300
|
0~50
|
30000
|
MVA/8bits/LVDS
|
|
23.8
|
G238HAN01.0
|
1920x1080
|
250
|
0~50
|
30000
|
AHVA/8bits/LVDS
|
|
23.8
|
G238HAN01.1
|
1920x1080
|
250
|
0~50
|
30000
|
AHVA/8bits/LVDS
|
|
24.8
|
G238HAN02.0
|
1920x1080
|
850
|
0~50
|
30000
|
AHVA/8bits/LVDS
|
|
24.0
|
G240HW01 V.0
|
1920x1080
|
300
|
-20~70
|
50000
|
MVA/8bits/LVDS
|
|
24.0
|
G240UAN01.0
|
1920x1200
|
900
|
0~40
|
50000
|
AHVA/8bits/LVDS
|
|
27.0
|
G270ZAN01.1
|
3840x2160
|
800
|
0~40
|
30000
|
AHVA/10bits/EDP
|
|
17.0
|
M170ETN01.1
|
1280x1024
|
250
|
0~50
|
30000
|
TN/ 8bits/LVDS
|
|
19.0
|
M190PW01 V.8
|
1440x900
|
250
|
0~50
|
30000
|
TN/ 8bits/LVDS
|
|
21.5
|
T215HVN01.1
|
1920x1080
|
250
|
0~50
|
30000
|
MVA/8 bits/LVDS
|
|
